Details of ST-BH1

High-Performance Load Cell for Industrial Force Measurement

We specialize in the manufacture and supply of high-performance load cells, which are widely used to accurately measure tensile and load forces in various industrial applications. Thanks to our expertise in force measurement solutions, these load cells are manufactured to provide reliable performance, high accuracy, and long operational life, even in harsh operating environments.

Our tension load cells are widely used in cranes, hoists, structural testing, and material handling systems, providing consistent, real-time force monitoring to ensure safety and operational efficiency.

Complete Technical of Tension Load Cell

SpecificationDetails
Load Cell TypeTension Type for Pulling Force Measurement
Material ConstructionHigh-Grade Alloy Steel or Stainless Steel
Capacity Range100 Kg to 100 Ton Available
Accuracy Class±0.05% of Full Scale Output
Signal Output2mV/V Standard Sensitivity
Environmental ProtectionIP65 / IP67 Optional for Harsh Conditions
Cable LengthStandard 5 to 10 Meters (Customizable)
Application AreasCranes, Hoists, Rigging, Testing Equipment

Offered Product

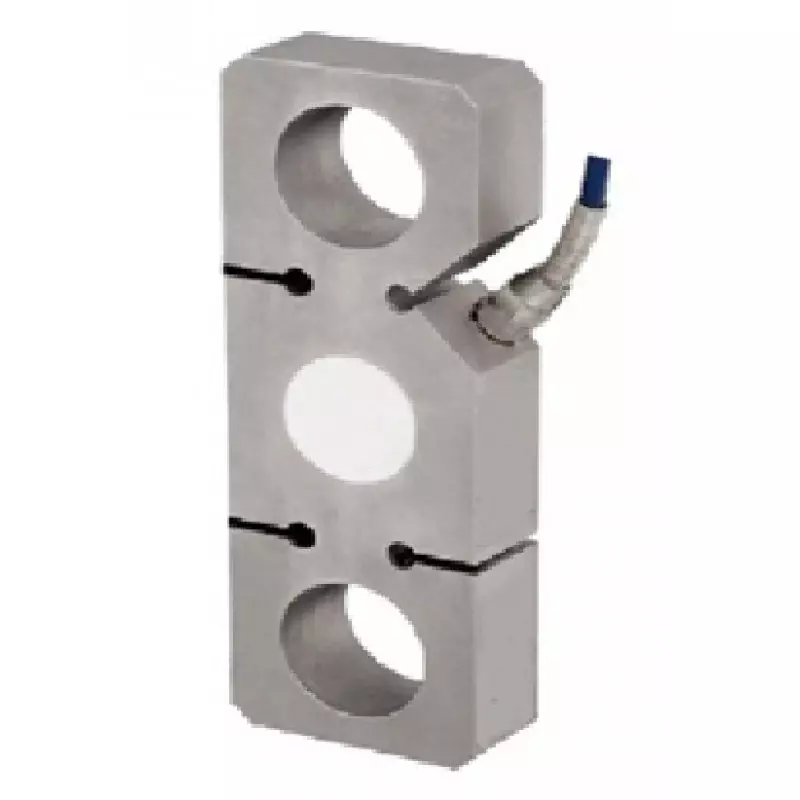

ST-BH1

Model ST-BH1 Is Strain Gauge Based Tension Load Cell And Which Is Protection Covered With Hermetically & Moisture Sealed. It Is Constructed With High Tool Steel Material With Electroless Nickel Platted For Harsh Industrial Shock Loads And Corrosion. It Is Universal Type Load Cells For Tension Load/force Measurements. This Load Cell Called As Tension Load Cell.FEATURES :Capacities (Tf.) : 1, 2, 5, 10, 20, 30, 40, 50, 60, 100, 120Load Direction : Tension OnlyType : Tension Load ... Read more
