Details of ST-BH1

Tension Load Cells for Industrial Applications

We provide Tension Load Cells designed to deliver precise force measurement for industrial applications. These load cells are widely used in crane systems, hoists, testing machines, material handling setups, and tensile testing machines. Manufactured from high-grade alloy or stainless steel, they ensure durability, high accuracy, and reliable operation even in harsh industrial environments. Designed for easy integration, they offer robust protection against dust and moisture, ensuring consistent performance.

Features

  • High-precision force measurement with excellent repeatability
  • Robust alloy or stainless steel construction for long-term use
  • Wide capacity range from 1 kg to 50,000 kg
  • IP65/IP67 protection for harsh environments
  • Versatile mounting options for rods, flanges, or through-holes

Specification

SpecificationDescription
Capacity Range1 kg – 50,000 kg
MaterialAlloy Steel / Stainless Steel
Output Signal4-20 mA / 0-10 V / mV/V
Accuracy±0.03% – ±0.1%
Protection ClassIP65 / IP67
Mounting TypeRod End / Flange / Through-Hole

Offered Product

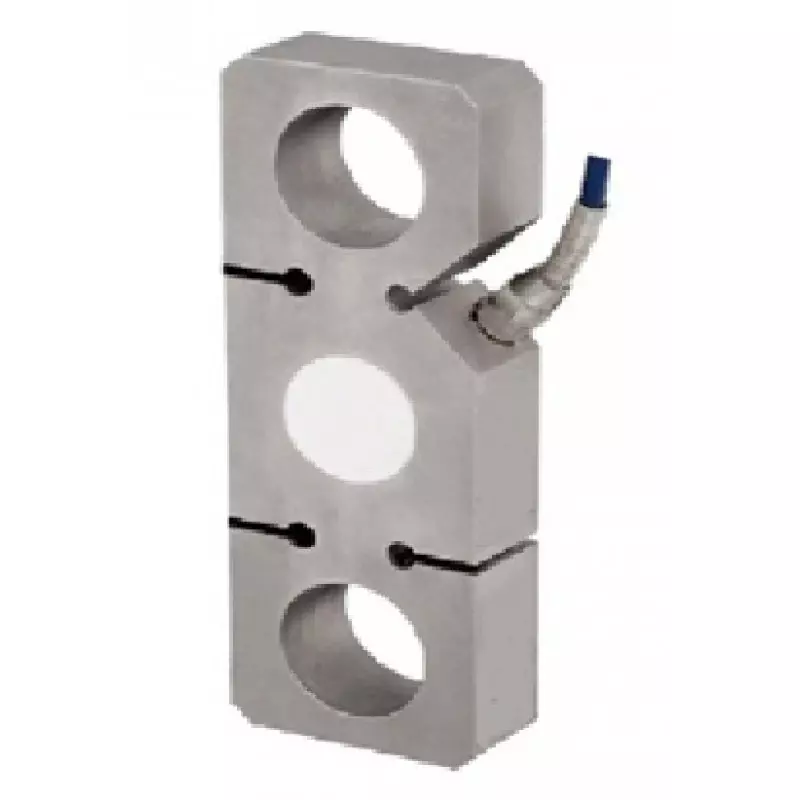

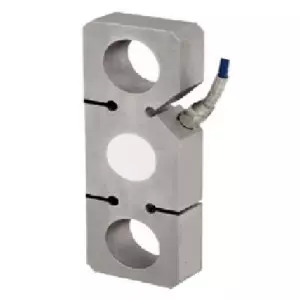

ST-BH1

Model ST-BH1 Is Strain Gauge Based Tension Load Cell And Which Is Protection Covered With Hermetically & Moisture Sealed. It Is Constructed With High Tool Steel Material With Electroless Nickel Platted For Harsh Industrial Shock Loads And Corrosion. It Is Universal Type Load Cells For Tension Load/force Measurements. This Load Cell Called As Tension Load Cell.FEATURES :Capacities (Tf.) : 1, 2, 5, 10, 20, 30, 40, 50, 60, 100, 120Load Direction : Tension OnlyType : Tension Load ... Read more
