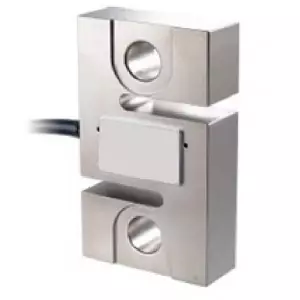

Shear Beam Load Cell Manufacturers In Delhi

We are manufacturing high-accuracy shear beam load cells and advanced laser system components engineered for specialized industrial applications, robust measurement, cost-efficient energy use, and seamless machine integration that assure regular performance, reduced operating costs, and long-term production longevity.

Technical Datasheet

• Load Capacity Range 500 kg to 10,000 kg
• Rated Output 2.0 ±0.1 mV/V
• Accuracy Class C3 / C4 (as per OIML R60)
• Combined Error ≤ ±0.02% of rated output
• Non-Linearity ≤ ±0.02% FS
• Hysteresis ≤ ±0.02% FS
• Repeatability ≤ ±0.01% FS
• Creep (30 min) ≤ ±0.02% FS
• Input Resistance 385 ±10 Ω
• Output Resistance 350 ±5 Ω
• Insulation Resistance ≥ 5000 MΩ at 50 VDC
• Excitation Voltage 5–12 VDC (Max 15 VDC)
• Safe Overload 150% of rated capacity
• Ultimate Overload 300% of rated capacity

Temperature Effects

• Operating: -20°C to +65°C
• Compensated: -10°C to +40°C
• Construction Material Nickel-plated alloy steel / Stainless steel
• Protection Class IP67 / IP68
• Mounting Type Shear beam mounting assemblies
• Typical Applications Platform scales, hopper weighing, tank weighing, batching systems

Comparison range

Fiber vs CO₂ vs Solid-State Lasers

CO₂ Laser

• Suitable for non-metals
• Higher maintenance
• Lower efficiency
• Larger footprint

ROI and Energy-Consumption Analysis

1. Faster cutting speed
2. Reduced scrap rate
3. Lower labor dependency
4. Minimal maintenance downtime

Integration Benefits

• Real-time power modulation
• Stable beam delivery
• Consistent cut quality
• Improved machine uptime

FAQ and Troubleshooting Guide

1. What causes inconsistent cutting? Power instability, dirty optics, or incorrect focus settings.
2. How often should calibration be done? Every 6–12 months depending on usage intensity.
3. Why does power drop over time? Optical contamination, cooling inefficiency, or aging components.
4. Can the power source run continuously? Yes, when operated within rated duty cycle and cooling limits.
